Kenmerken

Specificaties

Product Type: Dryer granulator

Condition: New

Machine Type: Granulator

Output (kg/h): 300

Voltage: 220V

Dimension(L*W*H): Depends

Weight (KG): 250

Power (kW): 37

Warranty: 1 Year

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, industry

After-sales Service Provided: Field maintenance and repair service

Certificering: CE,ISO

Application: Chemical Industry

Product Name: dryer granulator

Material: Stainless Steel 304

Keyword2: paraffin wax granulator machine

Function: High Capacity

Model: FL

MQQ: 1 set

Prijs: cost

Heating source: Electricity

Keywords: fluid bed dryer granulator

Basis informatie

Certificering: CE,ISO

Model Number: FL

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Plastic Film & Plywood Case.

Supply Ability: 10 Set/Sets per Month

Productomschrijving

Product Description

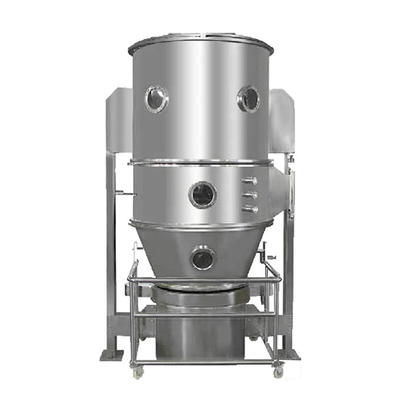

Multifunctional fluid bed dryer paraffin wax granulator machine pp granulation machine

Product Application

RELA FL Fluid Bed Dryer Granulator is used to make granule from powder with binder, and to dry the granule at the same time. This machine can make dry granule from dry powder in one same chamber by one step. It is applicable for Pharmaceutical Industry, Foodstuff Industry, Spice Industry, Chemical Industry, etc.

Working Principle

The powder granule in container (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Technical Parameters

Model	Capacity (kg)	Fan motor (kw)	Steam consumption (kg/h)	Steam Pressure (MPa)	Temperature (℃)	Working Time (min)	Compressed air consumption (m3/min)
Model	Capacity (kg)	Fan motor (kw)	Steam consumption (kg/h)	Steam Pressure (MPa)	Temperature (℃)	Working Time (min)	Compressed air consumption (m3/min)
FL-3	3	3	15	0.1-0.4	Max.120	45-90	0.9
FL-5	5	4	23				0.9
FL-15	15	5.5	42				0.9
FL-30	30	7.5	70				0.9
FL-60	60	11	141				1
FL-120	120	18.5	211				1
FL-200	200	30	282				1.1
FL-300	300	37	366				1.5
FL-500	500	45	451				3
FL-1000	1000	90	750				4
